DAMOTO PRODUCT COMBI Original 20.0 Liquid 48V
With the DAMOTO BUNDLE 20kW Liquid 48V as electric boat propulsion system, you are choosing proven technology and extensively tested products. Advanced electronics and integrated temperature-controlled liquid cooling make your system energy-efficient, responsive, whisper-quiet, reliable, durable, and safe. DAMOTO develops and manufactures in the Netherlands.
The beating heart of every DAMOTO MODULAR system is the eCONTROL. This advanced controller drives your electric inboard boat motor and, together with motor feedback sensors, ensures optimal performance. Through integrated liquid cooling and a pump, the operating temperature is electronically regulated, resulting in a longer lifespan, improved performance, and higher efficiency and reliability. The eCONTROL is naturally composed of high-quality, moisture- and water-resistant components, made of corrosion-resistant stainless steel and anodized aluminum.
In addition, the eTORQ electric inboard boat motor provides propulsion without the need for a transmission. With Tractie AC Induction technology, known for its exceptionally high peak power, you get a reliable powerhouse. The operating temperature of the eTORQ is electronically regulated through liquid cooling integrated into almost the entire length of the motor housing, along with the aforementioned pump. This extends the lifespan, improves performance, and increases efficiency and reliability. The eTORQ is also moisture- and water-resistant, and constructed with corrosion-resistant stainless steel and anodized aluminum. The adjustable motor frame makes installation easy.

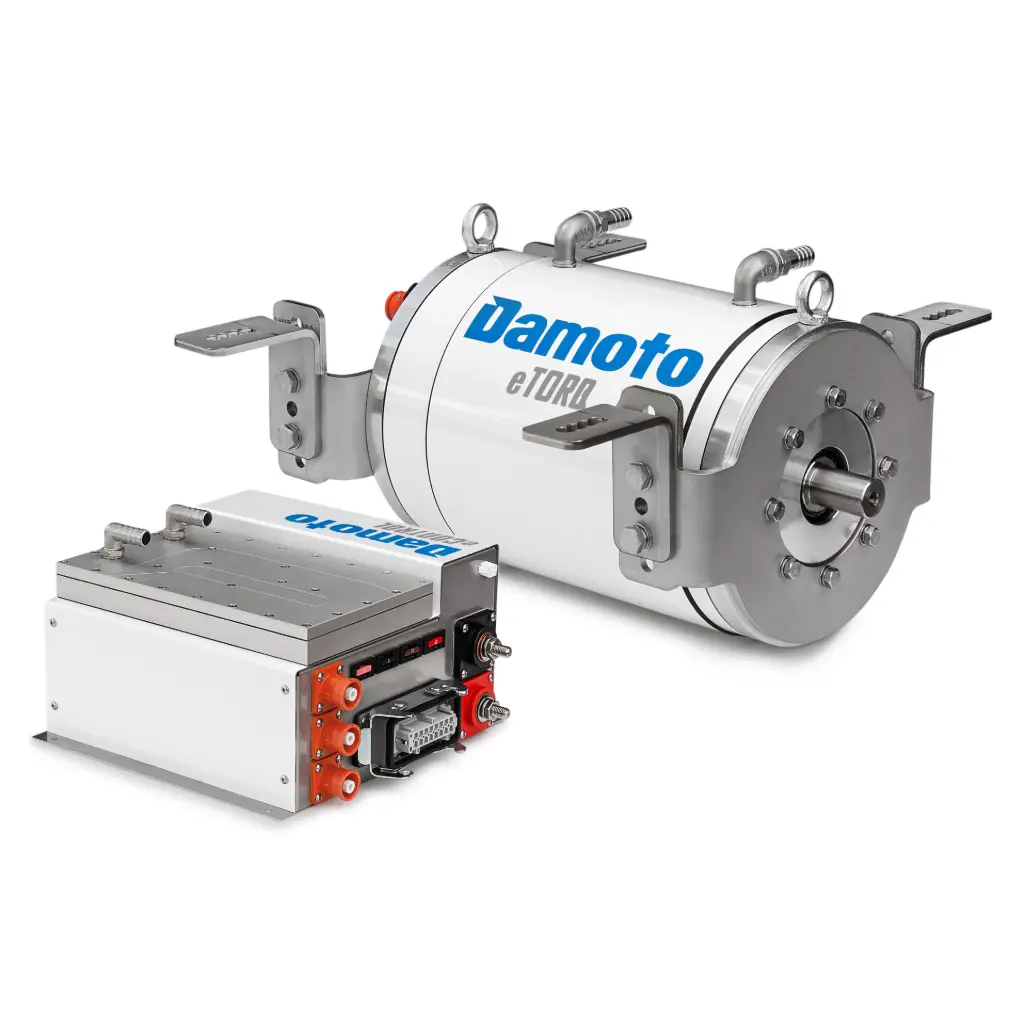

This DAMOTO BUNDLE 20kW Liquid 48V electric boat propulsion system consists of:
- eCONTROL, controller [DATA SHEET]
- eTORQ, electric inboard boat motor [DATA SHEET]
- eTHROTTLE, throttle
- Cooling kit, open circulation (self-priming pump, hull fittings, ball valve, bronze water filter, 5 m hose, hose barbs, and clamps)
- Key switch
- Safety stop button
Sail into the future with the DAMOTO BUNDLE 20kW Liquid 48V electric boat propulsion system and enjoy the silence, fresh air, and contribute to a better environment!
Specifications
| Brand | DAMOTO |
| Recommended for boats from (Metric Tons) | 3.3 |
| Battery Voltage (V DC) | 48 |
| Cooling | Liquid |
| Motor Technology | Traction AC Induction |
| Motor Ingress Protection | IP66 |
| Motor Peak Power (KW) | 20 |
| Motor Rated Power (kW) | 10 |
| Motor Peak Current (A) | 460 |
| Motor Rated Current (A) | 240 |
| Motor Speed Rated (rpm) | 1460 |
| Motor Starting Torque (Nm) | 130 |
| VFD Ingress Protection | IP65 |
| VFD Peak Current (A) | 460 |
